100v,
12ax7/ ecc83 x6
操作正常可以試
尺寸: 闊45.5, 高19, 深26cm

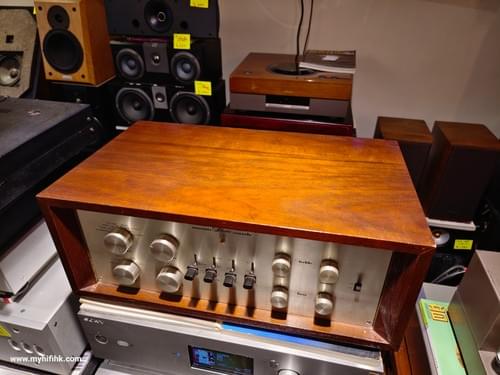

Type Tube type control amplifier
Rated Output / Maximum Output (1 kHz) Pre out:2V/15V
Frequency characteristic FM ・ AM, FM (Multiplex), TV, Auxiliary, Tape-play : 20 Hz ~ 40 kHz ± 1 db
RIAA deviation 20 Hz to 20 kHz ± 1 dB
Input Sensitivity / Impedance Microphone : 1.4mV/1M Ω
Phono1, 2 : 1.2mV/47k Ω
Tape-Head : 2.5mV/1M Ω
FM / AM, FM (Multiplex), TV, Auxiliary, Tape-play : 140mV/330k Ω
Maximum Allowable Input (1 kHz) Microphone:140mV
Phono1, 2 : 140 mV
Tape-Head:300mV
Power supply voltage 100 VAC, 50Hz/60Hz
Power consumption 35W (Electrical Appliance and Material Control Law)
External dimensions Width 391x Height 155x Depth 261 mm
Weight 5.0kg
Sold Separately : Dedicated Wood Case WC-7 (¥ 25,000)
External dimensions Width 452x Height 171x Depth 260 mm
Weight 2.0kg
